A3144 مستشعر تأثير هول
يُعد A3144 مستشعرًا أحادي القطب بتأثير هول مصممًا لاكتشاف المجالات المغناطيسية وتوفير إشارة خرج رقمية. يُستخدم بشكل شائع في استشعار المواضع، اكتشاف السرعة، وتطبيقات التبديل اللا تلامسي. يعمل المستشعر عن طريق اكتشاف القطب الجنوبي للمغناطيس، حيث يُغير خرجه إلى منخفض (نشط) عند وجود مجال مغناطيسي قوي، ويعود إلى مرتفع (غير نشط) عند اختفاء المجال.
المواصفات الرئيسية:
- النوع: مفتاح تأثير هول أحادي القطب
- جهد التشغيل: 3.8V – 24V
- نوع الإخراج: مجمّع مفتوح (Open-collector)، رقمي
- نطاق الاستشعار: ينشط عند اكتشاف القطب الجنوبي للمغناطيس
- زمن الاستجابة: سريع التبديل
- درجة حرارة التشغيل: -40°C إلى 85°C
- نوع التغليف: TO-92
التطبيقات:
- أجهزة استشعار السرعة للمحركات والمراوح
- استشعار المواضع والمسافات القريبة
- تطبيقات التبديل اللا تلامسي
- مستشعرات الأمان للأبواب والنوافذ المغناطيسية
يُعد A3144 مستشعرًا موثوقًا وصغير الحجم ومنخفض الطاقة، ويُستخدم على نطاق واسع في السيارات، التطبيقات الصناعية، والإلكترونيات الاستهلاكية لاكتشاف المجالات المغناطيسية.

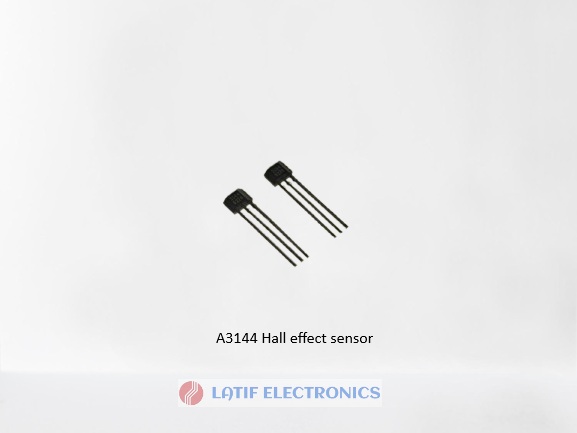

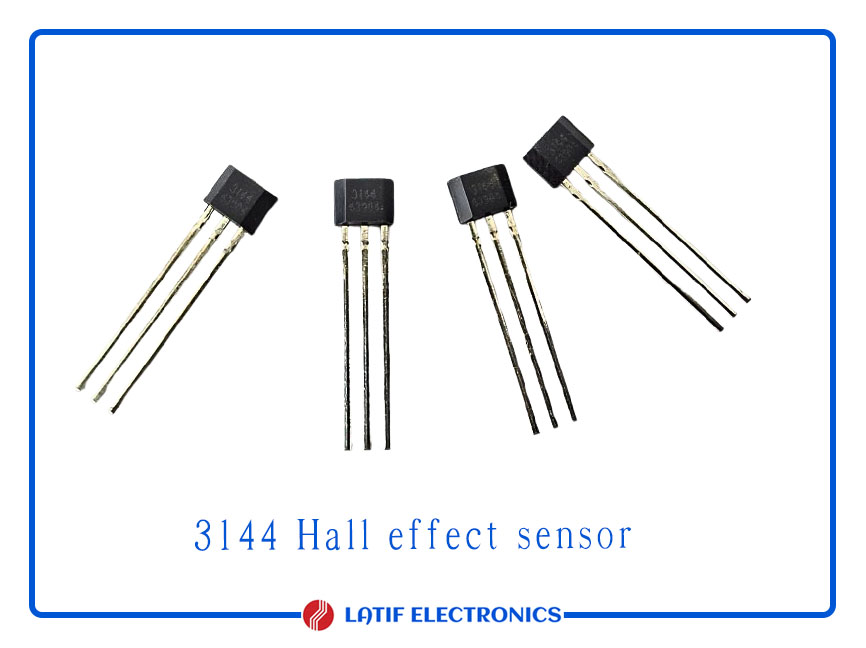

A3144 Hall Effect Sensor
The A3144 is a unipolar Hall-effect sensor designed to detect magnetic fields and provide a digital output signal. It is commonly used in position sensing, speed detection, and contactless switching applications. The sensor operates by detecting a south pole magnetic field, switching its output low (active) when a strong enough magnetic field is present and returning high (inactive) when the field is removed.
Key Specifications:
- Type: Unipolar Hall-effect switch
- Operating Voltage: 3.8V – 24V

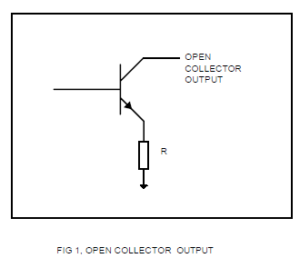

- Output Type: Open-collector, digital
- Sensing Range: Activates with south pole magnet
- Response Time: Fast switching
- Operating Temperature: -40°C to 85°C
- Package Type: TO-92
Applications:
- Speed sensors for motors and fans
- Position and proximity sensing
- Contactless switch applications
- Magnetic door/window security sensors
The A3144 is a reliable, compact, and low-power sensor widely used in automotive, industrial, and consumer electronics for magnetic field detection.
