وصف ترانزستور 2N3055:
ترانزستور 2N3055 هو ترانزستور طاقة ثنائي القطب من نوع NPN.
يتميز بتصميم متين بغلاف معدني TO-3.
يتحمل الترانزستور جهدًا أقصى بين المجمع والباعث يبلغ 60 فولت.
تبلغ شدة تيار المجمع المستمر 15 أمبير.
يوفر الجهاز قدرة عالية على تبديد الطاقة تبلغ 115 واط.
صُمم لتطبيقات تضخيم الطاقة والتبديل متعددة الأغراض.
يتطلب الترانزستور تبديدًا حراريًا مناسبًا لتحقيق الأداء الأمثل.
يتراوح كسب تيار التيار المستمر (hFE) بين 20 و70 فولت عند 4 أمبير.
تشمل التطبيقات الشائعة مصادر الطاقة الخطية ومضخمات الطاقة الصوتية.
كما يُستخدم في منظمات التوصيل التسلسلي ودوائر التحكم في الطاقة.
يُعد ترانزستور 2N3055 مكونًا قياسيًا في الصناعة لعقود.
يُعرف بموثوقيته وبنيته المتينة. ولا يزال الترانزستور شائعًا في تطبيقات الهواة والتطبيقات الصناعية.

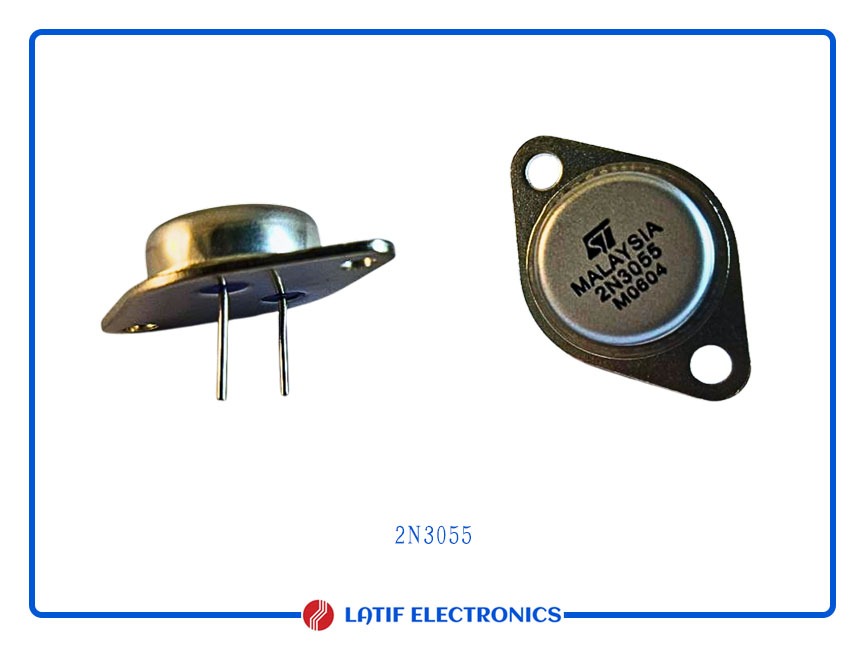

Description of the 2N3055 transistor:
- The 2N3055 is an NPN bipolar junction power transistor.
- It features a robust TO-3 metal package design.
- The transistor can handle a maximum collector-emitter voltage of 60 volts.
- It has a continuous collector current rating of 15 amperes.
- The device offers a high power dissipation capability of 115 watts.
- It is designed for general-purpose power amplification and switching applications.
- The transistor requires proper heat sinking for optimal performance.
- It has a DC current gain (hFE) ranging from 20 to 70 at 4 amperes.
- Common applications include linear power supplies and audio power amplifiers.
- It is also used in series pass regulators and power control circuits.
- The 2N3055 has been an industry-standard component for decades.
- It is known for its reliability and rugged construction.
- The transistor remains popular in hobbyist and industrial applications.
Click here for datasheet: 2N3055
