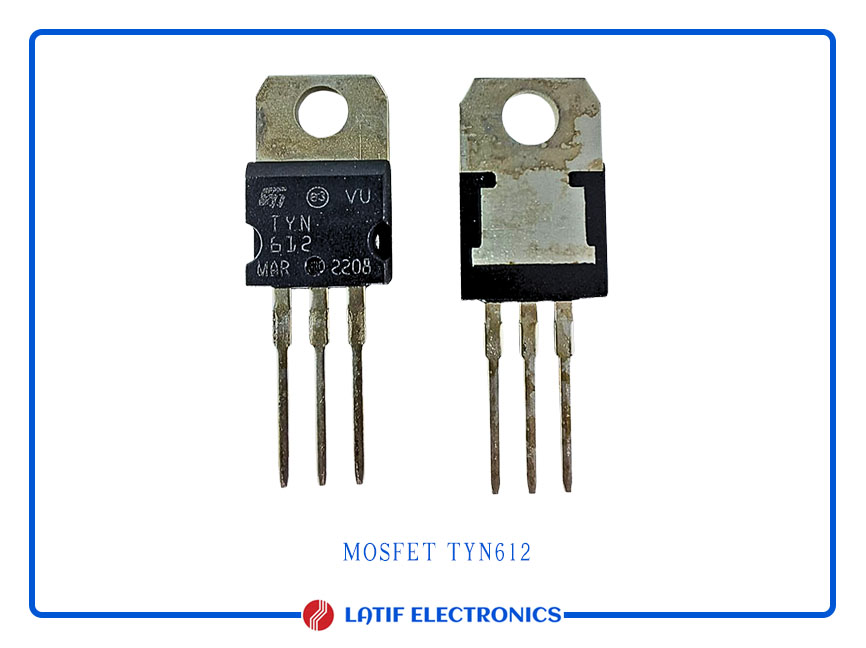

Thyristor SCR
TYN612 هو مُقوِّم مُتحكَّم به بالسيليكون (SCR) أو ثايرستور، يُستخدم عادةً في التبديل والتحكم في الطور في تطبيقات التيار المتردد. صُمِّمَ للتعامل مع الفولتية والتيارات العالية، مما يجعله مناسبًا لتطبيقات الطاقة المتوسطة مثل التحكم في المحركات، ومخفتات الإضاءة، وشواحن البطاريات، وتنظيم طاقة التيار المتردد.
الميزات الرئيسية:
تصنيف الجهد (VDRM): حتى 600 فولت
تصنيف التيار (IT(RMS)): 12 أمبير RMS
تيار تشغيل البوابة (IGT): منخفض نسبيًا، مما يُسهِّل التشغيل
نوع العبوة: TO-220، مما يُسهِّل التركيب ويُبدّد الحرارة بشكل جيد
يُوصِّل TYN612 عند تطبيق نبضة بوابة، ويبقى مُشغَّلاً حتى ينخفض التيار المار فيه عن حدٍّ مُعيَّن (تيار التثبيت). يُوفِّر أداءً موثوقًا في التبديل، ويُستخدم عادةً في مُقوِّمات التيار المُتحكَّم بها ومنظمات التيار المتردد.
The TYN612 is a silicon controlled rectifier (SCR) or thyristor, commonly used for switching and phase control in AC applications. It is designed to handle high voltages and currents, making it suitable for medium-power applications such as motor control, light dimmers, battery chargers, and AC power regulation.
Key Features:
- Voltage Rating (VDRM): Up to 600V
- Current Rating (IT(RMS)): 12A RMS
- Gate Trigger Current (IGT): Relatively low, enabling easy triggering
- Package Type: TO-220, which allows for easy mounting and good heat dissipation
The TYN612 conducts when a gate pulse is applied and remains on until the current through it drops below a certain threshold (holding current). It offers reliable switching performance and is commonly used in controlled rectifiers and AC regulators.
